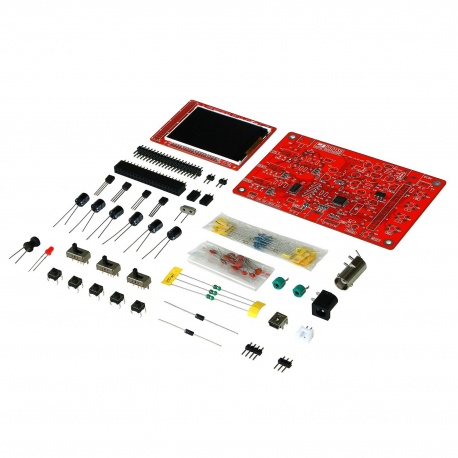

DSO138 was designed as a 'training' oscilloscope kit. Simplicity in structure and ease of assembly/operation were the main design goals. To meet this goal, DSO138 uses mostly through-hole parts.
This oscilloscope is partially open-sourced, which means source code is available to allow user to add their own features. At the heart of DSO138 is a Cortex-M3 ARM processor (STM32F103C8) from ST. Of course, the MCU has been pre-programmed, so no re-programming is required. It uses 2.4-inch TFT LCD (320 X 240 dotmatrix, 262K colors) as its display element to ensure clear waveforms.
Detailed assembly instructions, troubleshooting guide and schematic are provided.
DSO138 Features:
- Analog bandwidth: 0 - 200KHz
- Sampling rate: 1Msps max
- Sensitivity: 10mV/Div - 5V/Div
- Sensitivity error: < 5%
- Vertical resolution: 12-bit
- Timebase: 10us/Div - 500s/Div
- Record length: 1024 points
- Built-in 1KHz/3.3V test signal Waveform frozen
- (HOLD) function available
- Save/recall waveform
