This HF bundle contains everything you need to get you listening to signals between 100kHz - 2300MHz on your computer or embedded device!

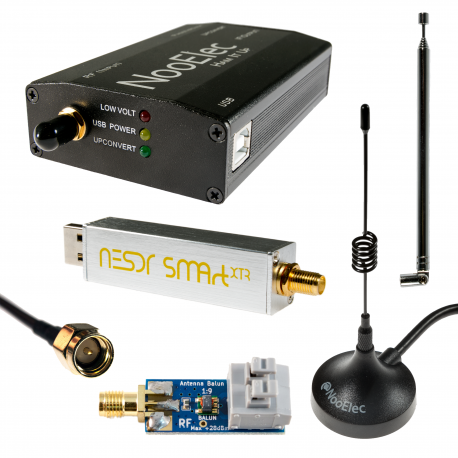

Each kit will contain an NESDR SMArt XTR SDR with 0.5PPM TCXO, SMA-connected antenna with 3 different masts for VHF, a Ham It Up upconverter to enable HF reception, and a cable to connect the two units.
Optional items include a quality aluminum upconverter enclosure for the Ham It Up, and antenna adapters to connect various antenna types to the upconverter and SDR.
Additional Info
Additional Info
| SKU | 999016 |
|---|---|
| UPC | No |
Reviews
Downloads
Product Downloads
Manual
Software
(Size: 20.5 MB)
NESDR-compatible SDR software for 64-bit Windows.
You must install the NESDR driver before successfully operating this software.
(Size: 19.2 MB)
NESDR-compatible SDR software for 32-bit Windows.
You must install the NESDR driver before successfully operating this software.
Images
(Size: 24.4 KB)
Back to back VNA sweep of two baluns shows that one Balun has Return Loss (S11) >-10dB (VSWR<2) between 1MHz and 54MHz with Insertion Loss (S21) <1.5dB (divide by two to get loss of one balun). It covers the 160m to 6m amateur bands.
(Size: 108.5 KB)
Back to back VNA sweep of two baluns shows that one Balun has Return Loss (S11) >-10dB (VSWR<2) between 1MHz and 54MHz with Insertion Loss (S21) <1.5dB (divide by two to get loss of one balun). It covers the 160m to 6m amateur bands.
Schematics
Datasheet
(Size: 448.3 KB)
Measurements on DVB-T Dongles with E4000 and R820T Tuners - HB9AJG
