You spoke, we listened! This premium RTL-SDR was designed, developed and fabricated by Nooelec in the USA and Canada in order to implement a wide array of feature requests. Compared to R820T-based devices, this E4000-based SDR excels at sensitivity at <500MHz and >1500MHz, and is capable of far higher frequencies, up to approximately 2350MHz. There is a small gap in frequency capability near 1100MHz. As such, we do NOT recommend this device for ADS-B usage. For ADS-B applications, consider the NESDR SMArt instead, Nooelec SKU 100700 or 100701.
Included:

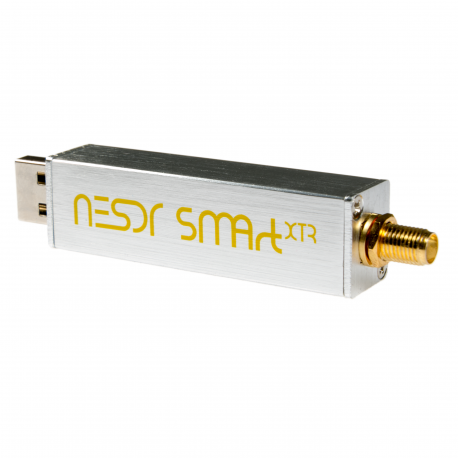

✔ NESDR SMArt XTR SDR in silver brushed aluminum enclosure
SDR Specifications:
✔ RTL2832U Demodulator/USB interface IC
✔ E4000 tuner IC
✔ 0.5PPM, ultra-low phase noise TCXO
✔ 2 RF-suitable voltage regulators
✔ Shielded primary inductor
✔ Integrated custom heatsink
✔ 2 silicone pads
✔ Female SMA antenna input
✔ High-quality silver brushed aluminum enclosure
✔ Frequency capability approximately 65MHz-2300MHz, with small frequency gap near 1100MHz
TCXO Specifications:
✔ Frequency stability: 0.5PPM (max)
✔ Phase noise @1kHz offset: -138dBc/Hz (or better)
✔ Phase noise @10kHz: -150dBc/Hz (or better)
✔ Phase noise @100kHz: -152dBc/Hz (or better)
Additional Info
Additional Info
| SKU | 100724 |
|---|---|
| UPC | No |
| USB Interface IC | RTL2832U |
| Tuner IC | E4000 |
| Frequency Range (approximate) | 55MHz - 2300MHz |
| TCXO clock | Yes |
| Antenna Connector Type | SMA Female |
| Antenna Included? | No |
| Remote Included? | No |
| Additional Accessories | No |
