NanoVNA-H 4 Bundle is an open-hardware vector network analyzer bundle which includes everything you need to test most RF equipment with ease. The RF sections are EMI shielded to reduce potential interference and improve instrument accuracy. A portion of all proceeds of this VNA is paid to the ttrftech team to continue and further NanoVNA development.
NanoVNA-H 4 includes a 4" TFT touch screen, with a simple interface that allows for measuring S-parameters (S11 and S21). SWR, phase and smith chart capability.
The VNA includes a 1950mAh battery for a longer runtime when taking portable measurements. Fantastic for field use!
Measurement capability of at least 10kHz-1500MHz. Frequency accuracy is 0.5PPM or better, RF output power is -13dBm and SWR < 1.1.
NanoVNA can also communicate with your PC via USB-C (serial mode). USB cable is included.

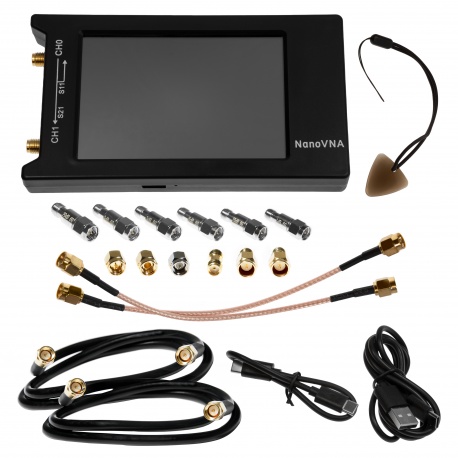

Included:
- NanoVNA-H 4 with EMI shielding & 1950mAh battery
- 6pc SMA attenuators (1dB, 2dB, 3dB, 6dB, 10dB, 20dB)
- 3pc SMA calibration kit
- 2pc SMA quick connect adapters (plug-style SMA adapters)
- Female SMA to female SMA adapter
- 2pc RG174 cable, 30cm
- 2pc LMR200 cable, 60cm
- USB-C data cable, 30cm, x2
Additional Info
Additional Info
| SKU | 100833 |
|---|---|
| UPC | 0616469146748 |
